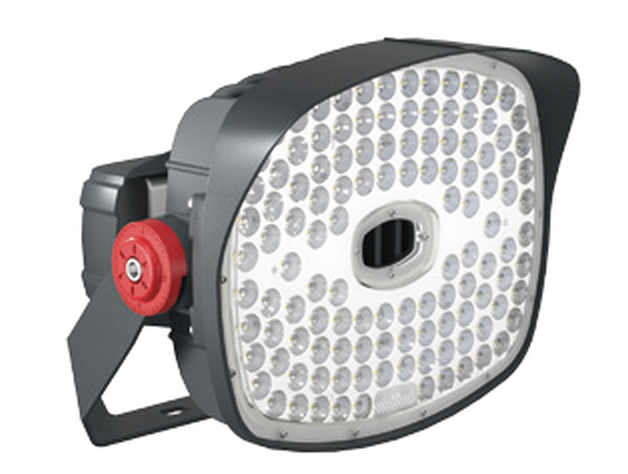

Product Overview

The AFL Series LED Sports Field Lighting System represents a decisive advancement in professional-grade stadium and recreational field illumination. Engineered for facilities that demand consistent, high-output performance, the AFL Series is available in seven wattage configurations spanning 240W to 1,800W — enabling precise system design for everything from community athletic complexes to broadcast-ready professional venues.



What sets the AFL Series apart in the commercial market is its infrastructure-compatible form factor. Each fixture is purpose-built to physically replace legacy metal halide and HID luminaires — including widely deployed models from Philips (MVF024, MVH-401/403/406 Arena Vision, MVF408-CAT1-1800W, NHF003) and Thorn (Mundial) — without requiring new poles, crossarms, demolition work, or foundation reinforcement. Facility owners and procurement managers gain a direct upgrade path that dramatically reduces both capital expenditure and project timelines.



Powered by premium Lumileds and CREE LED chips operating at up to 230 lm/W, and driven by Philips, Mean Well, or Inventronics power supplies, the AFL Series delivers measurably superior uniformity, color quality, and long-term reliability versus legacy discharge-lamp systems — with an operating temperature range of −40°C to +60°C and an IP66 weatherproof rating for year-round outdoor deployment.



2.  Key Features

Infrastructure Compatibility & Retrofit Design

• Drop-in replacement geometry matches legacy Philips and Thorn sports fixtures — no structural modifications required
• Reduces installation costs by up to 50% by eliminating new pole, crossarm, and foundation work
• Compatible with all standard high-mast pole configurations



High-Output LED Performance

• High-efficiency LED chips rated at 230 lm/W — up to 350% more field illumination per fixture than traditional metal halide
• Available in seven system wattages: 240W, 300W, 500W, 600W, 1000W, 1200W, and 1800W
• Luminous flux output from >38,400 lm (240W) to >288,000 lm (1800W)
• CRI options of 70, 80, and 90+, with lamp efficacy of 160 lm/W (CRI 70) and 150 lm/W (CRI 80)



Advanced Optical Beam Control

• Asymmetric beam distribution engineered through advanced photometric calculus
• 98% light beam pinpoint precision — directs light onto the playing surface, not surrounding properties
• Available beam angles: 15°, 30°, 60°, and 40°×85° asymmetric
• Each individual optical module features its own precise aiming point for maximum coverage uniformity
• Laser Aiming Assembly included for precise mechanical aiming during installation



10× Uniformity Improvement

• AFL Series delivers light variation of only 20% across the playing surface over a 10-year operating lifespan
• Compared to metal halide systems that exhibit up to 200% variation, this represents a 10× uniformity improvement
• Eliminates hot spots for consistent visibility for players, spectators, and broadcast cameras



Energy Efficiency & Operating Cost Savings

• Reduces energy consumption by more than 80% versus comparable metal halide lamp systems
• Single 300W AFL module replaces a 1,000W traditional lamp — 70% wattage reduction per light point
• High power factor (>0.98) and low total harmonic distortion (<20% THD) support clean power utilization



Intelligent Controls & Dimming

• Full compatibility with DMX512, 0–10V, and DALI dimming protocols
• Enables phased lighting scenes for training, game play, broadcast, and energy-saving modes
• 10KV surge protection device standard on all models



Construction & Weatherproofing

• IP66 rated — fully dust-tight and protected against powerful water jets
• IK08 mechanical impact protection
• Aluminum alloy heat sink for sustained thermal management
• PC optical lens with sealing ring for long-term optical integrity
• Integrated glare shield reduces peripheral light spillage
• Vertical adjustment dial enables field-level aiming calibration post-installation
• Mercury-free construction — environmentally responsible and compliant with disposal regulations



3.  Certifications and Compliance

The AFL Series has been developed and tested to meet the following industry standards and compliance benchmarks critical for commercial procurement:



• IP66 — Ingress Protection (IEC 60529): Full dust exclusion and high-pressure water jet resistance
• IK08 — Mechanical Impact Resistance (IEC 62262)
• LM-79 — IES Approved Method for Measuring Lumen Output and Efficacy
• LM-80 — IES Approved Method for LED Lumen Depreciation Testing
• TM-21 — Projecting Long-Term Lumen Maintenance of LED Light Sources
• CRI 80+/90+ Photometric Grade Options — suitable for broadcast and professional competition lighting
• THD <20% — Meets power quality requirements for commercial electrical installations
• Power Factor >0.98 — Exceeds utility grid efficiency standards
• DIALux Compatible — Full photometric data files available for lighting design and compliance simulations
• 10KV Surge Protection — Standard on all models per commercial installation requirements
• Mercury-Free — Compliant with RoHS and applicable disposal regulations



Please contact your sales representative for jurisdiction-specific certification documentation, DLC listing status, and photometric IES files for engineering review.



4.  Technical Specifications

General Electrical & Optical Parameters



LED Chip Brand	Lumileds / CREE
LED Chip Efficiency	Up to 230 lm/W
Lamp Efficacy (CRI 70)	160 lm/W
Lamp Efficacy (CRI 80)	150 lm/W
CRI Options	70 / 80 / 90+
CCT Options	3000K / 4000K / 5000K / 5700K / 6500K
Input Voltage	200–480V AC or 100–277V AC
Power Factor	>0.98
Total Harmonic Distortion	<20% THD
Beam Angles Available	15°, 30°, 60°, 40°×85°
IP Rating	IP66
IK Rating	IK08
Operating Temperature	−40°C to +60°C
Surge Protection	10KV Standard
Dimming / Controls	DMX512, 0–10V, DALI
Driver Brands	Philips / Mean Well / Inventronics
Mercury Content	Mercury-Free



Model Lineup: Lumen Output, EPA & Weight



Model	System Wattage	Initial Flux (CRI 70, lm)	EPA (ft²)	Weight (lbs / kg)	Notes
AFL-240W	240W	>38,400	1.224	16.09 / 7.3 kg	Single module
AFL-300W	300W	>48,000	1.224	16.09 / 7.3 kg	Single module
AFL-500W-A	500W	>80,000	2.508	37.47 / 17 kg	Dual module – Type A bracket
AFL-500W-B	500W	>80,000	2.664	37.47 / 17 kg	Dual module – Type B bracket
AFL-600W-A	600W	>96,000	2.508	37.47 / 17 kg	Dual module – Type A bracket
AFL-600W-B	600W	>96,000	2.664	37.47 / 17 kg	Dual module – Type B bracket
AFL-1000W-A	1000W	>160,000	5.008	72.75 / 33 kg	Quad module – Type A bracket
AFL-1000W-B	1000W	>160,000	6.06	81.57 / 37 kg	Quad module – Type B bracket
AFL-1200W-A	1200W	>192,000	5.008	72.75 / 33 kg	Quad module – Type A bracket
AFL-1200W-B	1200W	>192,000	6.06	81.57 / 37 kg	Quad module – Type B bracket
AFL-1800W	1800W	>288,000	8.976	116.84 / 53 kg	Six-module array – stadium grade



Physical Dimensions by Model



Model Group	Width	Height	Depth
AFL-240W / 300W	13.1 in (332 mm)	11.3 in (287 mm)	8.0 in (204 mm)
AFL-500W-A / 600W-A	25.6 in (650 mm)	11.8 in (300 mm)	10.5 in (267 mm)
AFL-500W-B / 600W-B	14.2 in (361 mm)	22.6 in (573.5 mm)	13.1 in (334 mm)
AFL-1000W-A / 1200W-A	26.9 in (682 mm)	22.8 in (578 mm)	13.7 in (348 mm)
AFL-1000W-B / 1200W-B	28.8 in (732 mm)	25.3 in (642 mm)	18.5 in (470 mm)
AFL-1800W	42.0 in (1068 mm)	26.6 in (676 mm)	10.4 in (265.5 mm)



5.  Applications

The AFL Series is engineered for demanding outdoor lighting environments where consistent illumination levels, energy efficiency, and long-term reliability are critical procurement priorities. Suitable applications include:



• Professional and semi-professional soccer / football stadiums
• Baseball and softball fields — including minor and major league facilities
• Track and field complexes requiring broadcast-compliant horizontal illumination
• Tennis courts and multi-sport facilities requiring even surface distribution
• Rugby and field hockey venues with full-perimeter light coverage requirements
• High school and collegiate athletic complexes
• Municipal parks and recreation department sports fields
• Multi-purpose arena and outdoor event venues
• Existing facilities undergoing HID or metal halide infrastructure upgrades
• High-mast applications requiring multi-module fixture configurations



The AFL Series is particularly well-suited for facility operators managing existing high-mast pole infrastructure who need a cost-effective, commercially proven path to LED conversion without incurring the civil engineering costs of a full system replacement.



6.  Customization Options

AFL Series fixtures can be configured and specified to meet project-specific performance, electrical, and control requirements:



Wattage Configuration

• Seven power levels available — 240W, 300W, 500W, 600W, 1000W, 1200W, and 1800W — enabling precise photometric system design
• Type A and Type B bracket configurations available on 500W–1200W models for different mounting geometries



CCT and CRI Selection

• Five CCT options: 3000K (warm white), 4000K (neutral white), 5000K, 5700K, and 6500K (daylight)
• CRI grades: 70 (standard), 80 (enhanced color rendering), and 90+ (broadcast / competition grade)



Optical Beam Angles

• Beam angle selection: 15° (narrow spot), 30° (medium spot), 60° (wide flood), or 40°×85° asymmetric for sideline and perimeter mounting positions
• Individual module aiming points allow precise beam targeting for complex multi-fixture installations



Dimming and Control Integration

• 0–10V analog dimming for standard dimmer compatibility
• DALI digital control for addressable, network-integrated lighting management
• DMX512 for broadcast and entertainment-grade control environments



Driver Brand

• Philips, Mean Well, or Inventronics drivers available — specify per project requirements or to match existing electrical system standards



Input Voltage

• Dual voltage range options: 200–480V AC (international / industrial) or 100–277V AC (North American standard)



7.  Warranty

AFL Series LED Sports Field Lighting fixtures are backed by a manufacturer’s warranty covering defects in materials and workmanship under normal operating conditions. Warranty coverage details, including duration and claims procedures, are provided with product documentation at time of purchase and are available upon request from your authorized distributor or sales representative.



• LED lumen maintenance performance supported by LM-80 test data and TM-21 projection reports
• All warranty claims must be processed through an authorized distributor or designated manufacturer representative
• Warranty does not cover damage resulting from improper installation, unauthorized modification, or operation outside of rated environmental parameters



Contact your regional sales manager for project-specific warranty documentation and extended coverage options available on qualifying commercial installations.



8.  Ordering Information

Specify AFL Series fixtures using the following ordering code structure. Contact your distributor or authorized sales representative for current pricing, lead times, and volume availability.



Ordering Code Format



AFL – [Wattage] – [Bracket Type] – [CCT] – [CRI] – [Beam Angle] – [Driver] – [Voltage]



Ordering Code Parameter Reference



Field	Options	Description
Wattage	240 / 300 / 500 / 600 / 1000 / 1200 / 1800	System wattage — see model lineup table
Bracket Type	A / B	Mounting bracket geometry (500W–1200W models only)
CCT	30K / 40K / 50K / 57K / 65K	Correlated Color Temperature
CRI	70 / 80 / 90	Color Rendering Index grade
Beam Angle	15 / 30 / 60 / 4085	Beam angle in degrees; 4085 = 40°×85° asymmetric
Driver	PH / MW / IN	Philips / Mean Well / Inventronics
Voltage	HV / LV	HV = 200–480V AC;  LV = 100–277V AC



Sample Order Code

AFL – 1000 – A – 57K – 80 – 4085 – MW – LV

Represents: AFL-1000W, Type A bracket, 5700K, CRI 80, 40°×85° beam, Mean Well driver, 100–277V AC input.



For project quotations, photometric simulation files (IES/DIALux), and volume pricing schedules, contact your authorized AFL Series distributor or submit an RFQ through your commercial lighting representative.



9.  Why Choose the AFL Series



Procurement Factor	Metal Halide (Legacy)	AFL Series LED
Infrastructure Costs	Full pole/crossarm replacement	Reuses existing infrastructure
Installation Cost	Baseline	Up to 50% reduction
Energy Consumption	Baseline	Up to 80% reduction
Field Illumination/Fixture	Baseline	+350% output efficiency
Light Uniformity (10yr)	Varies ±200%	Varies ±20% only
Glare & Offspill Control	Limited	98% beam precision, glare shield
Control Compatibility	On/Off only	DMX, DALI, 0–10V
Mercury Content	Contains mercury	Mercury-free
Surge Protection	Varies	10KV standard
